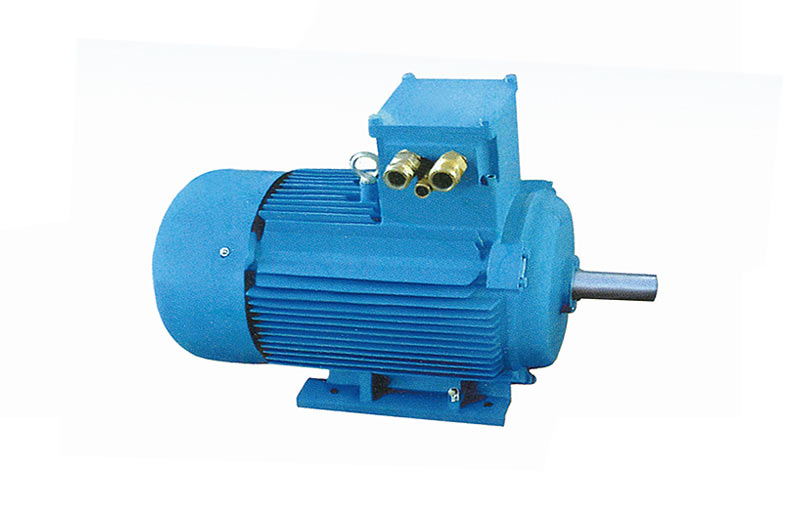

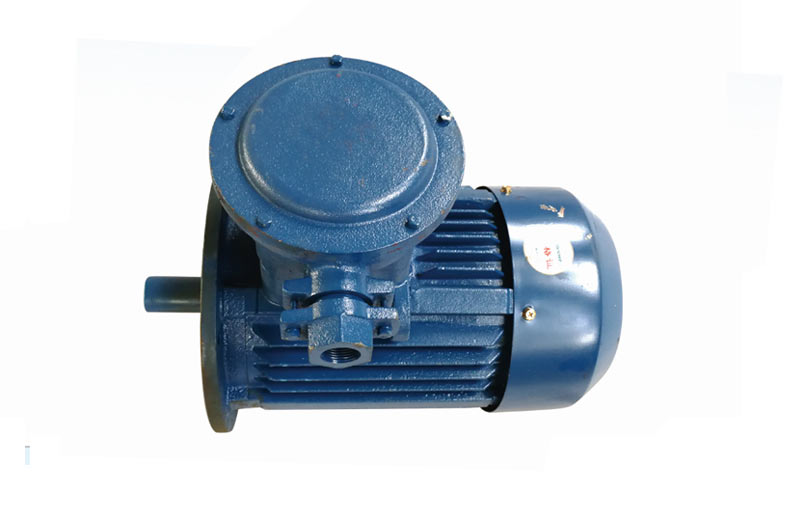

YB3-H系列船用隔爆型三相异步电动机

产品简介:
用途/APPLICATON机座号(Frame Size) :80~355
用于船舶上具有IIA、IIB、IIC,温度组别为T1-T4组的可燃性气体、蒸气与空气形成的爆炸性混合物的场所。在 船舶上作驱动各种机械,如泵类、通风机、分离器、液压机械及其它附助设备之用。
功率(Power):0.55~315kW
电压(Voltage):380V 或440V(380V or 440V)
频率(Frequency):50Hz或60Hz( 50Hz or 60 Hz)
They can be used on ships where protection mark is Exd IIA, Exd IIB and Exd IIC and fulfill flammable gas and explosive mixture. The Motors are suitable for driving various machines on ships,such as pumps、separators,hydraulic engine and other auxiliary equipments.防护等级(Protection Class):IP55-IP56
绝缘等级(Insulation Class):F级(F)
环境温度(Ambient Temperature):-20℃~45℃
海拔(Altitude):0m
