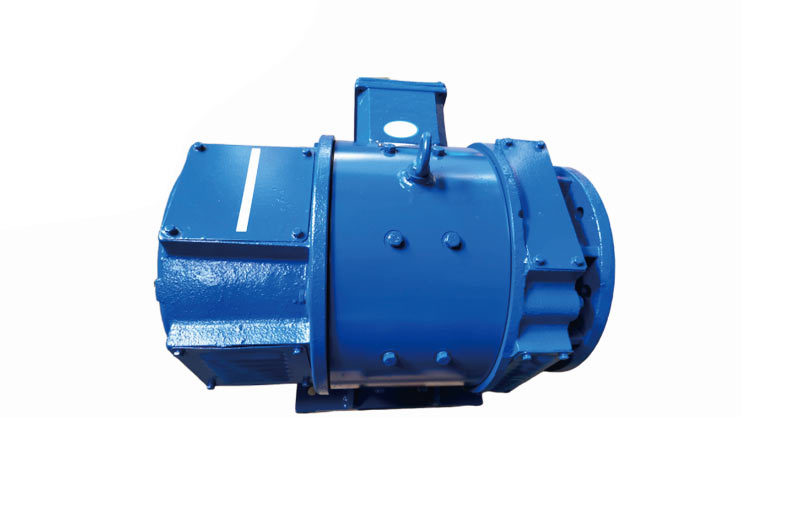

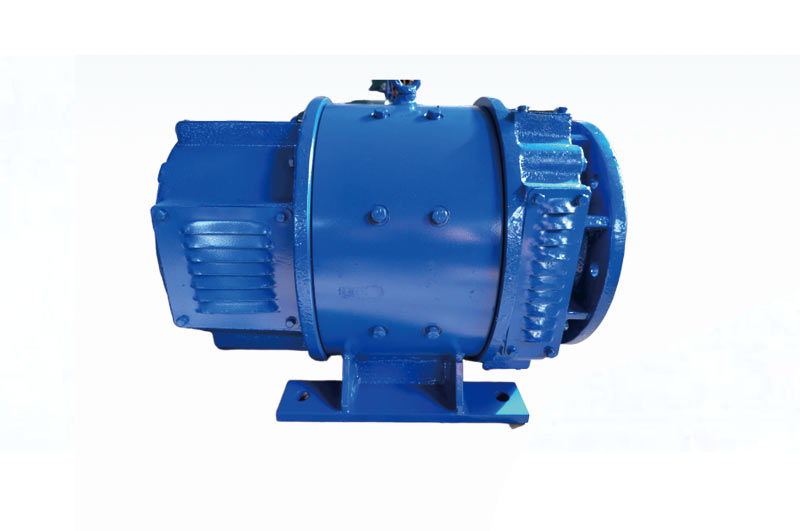

Z2C series marine DC motor

产品简介:

用途/APPLICATON 机座号(Frame Size)：1#~6#
适用于恒功率调速范围不大于2:1,过载能力不大于1.5倍额定转矩的电力拖动。为适应大范围的恒力矩调压调速及精密的速度控制，励磁电压根据不同的励磁电源可以是110伏,220伏,也可以是其他合适的电压。 功率(Power):0.8~200kW
电压(Voltage):110V或220V(110vor220V)
频率(Frequency):50Hz或60Hz( 50Hz or 60 Hz)
Applicable to constant power speed range of not more than 2: 1, the overload capacity of not more than 1.5 times the rated torque of the power drag. In order to adapt to a wide range of constant torque control and precision speed control, the excitation voltage according to the different excitation power can be 110 volts. 220 volts, can also be other suitable voltage. 防护等级(Protection Class):IP23
绝缘等级(Insulation Class):B级或F级或H级(B or F or H)
环境温度(Ambient Temperature):-20℃~50℃
海拔(Altitude):	海拔(Altitude):	0m

用途/APPLICATON	机座号(Frame Size)：1#~6#
适用于恒功率调速范围不大于2:1,过载能力不大于1.5倍额定转矩的电力拖动。为适应大范围的恒力矩调压调速及精密的速度控制，励磁电压根据不同的励磁电源可以是110伏,220伏,也可以是其他合适的电压。	功率(Power):0.8~200kW
	电压(Voltage):110V或220V(110vor220V)
	频率(Frequency):50Hz或60Hz( 50Hz or 60 Hz)
Applicable to constant power speed range of not more than 2: 1, the overload capacity of not more than 1.5 times the rated torque of the power drag. In order to adapt to a wide range of constant torque control and precision speed control, the excitation voltage according to the different excitation power can be 110 volts. 220 volts, can also be other suitable voltage.	防护等级(Protection Class):IP23
	绝缘等级(Insulation Class):B级或F级或H级(B or F or H)
	环境温度(Ambient Temperature):-20℃~50℃
	海拔(Altitude): 海拔(Altitude): 0m
