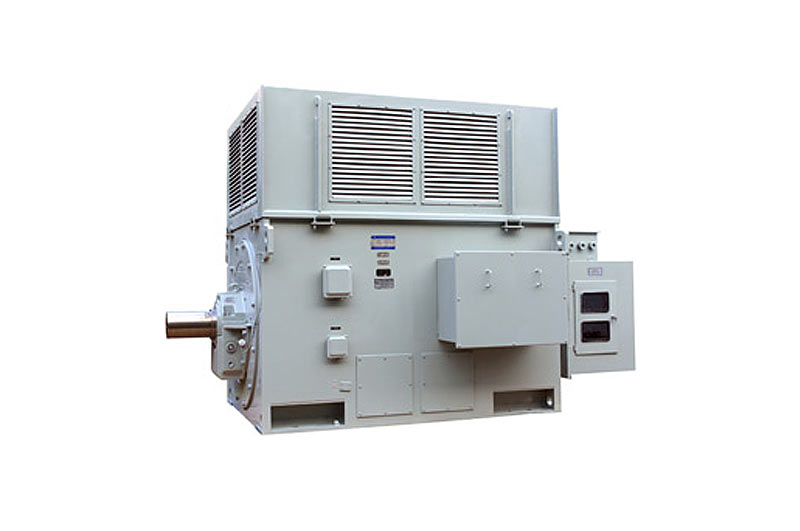

Yr series high-voltage three-phase asynchronous motor adopts anti corona coil design and rotor winding secondary paint dipping process, which has the advantages of good heat dissipation, compact structure, light weight, good stiffness and strong practicability.
[product description]
Yr series high-voltage three-phase asynchronous motor is a product developed by our company according to the needs of industries such as cement and steel plants. It mainly has the following characteristics:
1. The motor base adopts steel plate welded box structure, which is light in weight and good in rigidity;
2. By optimizing the electromagnetic design scheme, adopting the design and manufacture of anti corona coil, adopting the secondary paint dipping process of rotor winding, the fixation process of rotor winding, the "twice paint dipping and twice drying" process of collector ring and the application of vacuum pressure paint dipping (VPI) equipment, the insulation grade of the motor can reach class F and H insulation, which is safe and reliable.
[applicable standards for products]
JB/T7594-2008(6KV)、JB/T10445-2014(10KV)
[conditions of use]
1. Applicable place: indoor or outdoor, no dangerous gas environment;
2. Ambient temperature: -15 ~ +40 ℃;
3. Altitude: no more than 1000m;
4. Installation method: IMB3;
5. Protection grade: IP23, IP44 (pipe ventilation);
6. Insulation grade: F, H.
Yr series wound rotor high-voltage motors are suitable for driving all kinds of general machinery, such as fans, compressors, water pumps, crushers, cutting machine tools, transportation machinery and other mechanical equipment, and can be used as prime movers for various industrial and mining enterprises such as mines, machinery industry, petrochemical industry, power plants and so on.
